유압밸브
디스크 브레이크

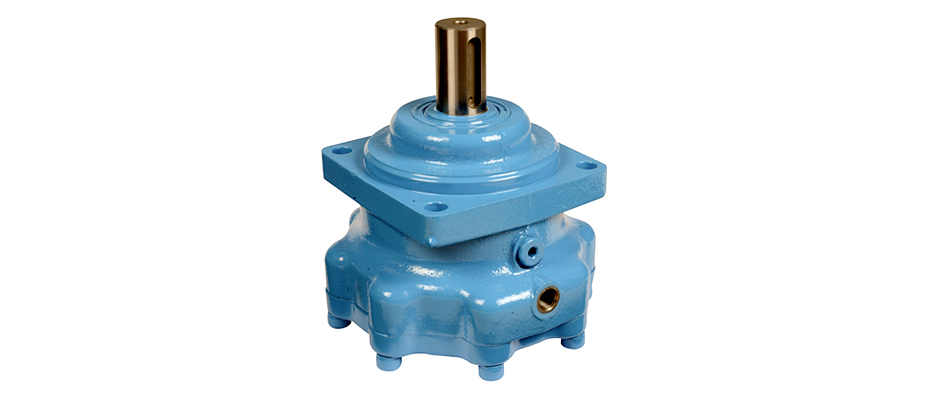

DISC BRAKE

DISC BRAKE

고소 작업차, 사다리차에 쓰이는 Disc Brake Actuator이다.

Specifications A Type

- Working Pressure : 240 bar Max.
- Brake Torque - Static : 1,250 Nm
- Brake Torque - Dynamic : 980 Nm
- Brake Release Pressure : 30 bar Min
- Max. Speed : 200 RPM
- Port Thread : BSP 1/4(PF ¼)

Specifications B Type

- Working Pressure : 240 bar Max.
- Brake Torque - Static : 610∼640 Nm
- Brake Release Pressure : 17∼23 bar
- Max. Speed : 200 RPM
- Port Thread : BSP 1/4(PF ¼)
- Motor Mount :
  2-Hole SAE a Mount
  4-Hole Magneto Mount
