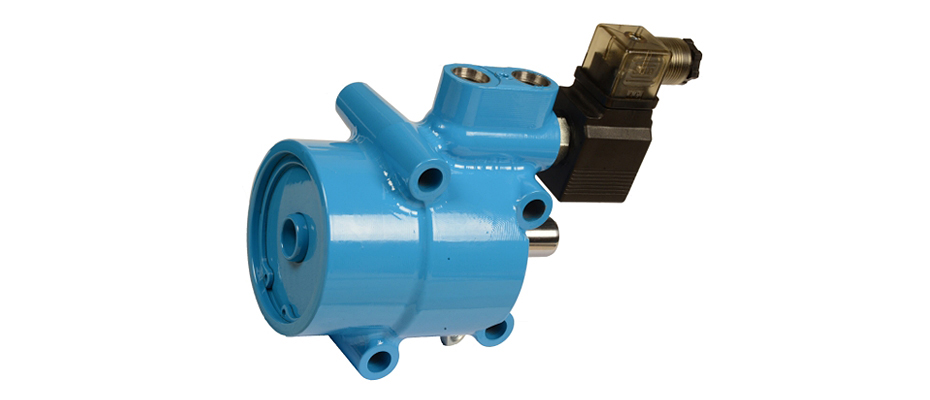

ELECTRONIC PARKING BRAKE
Electronic Parking Actuator로서 On/Off Solenoid Valve를 통하여 쉽게 브레이크 조작을 할 수 있다.
Specifications
“A” Type
- Operating Force : 200±10㎏f at Min 8 bar
- Operating Stroke : 15+2mm at Min 8 bar
- Weight : 5.0 Kg
- Available Voltage : 12Vdc or 24 Vdc

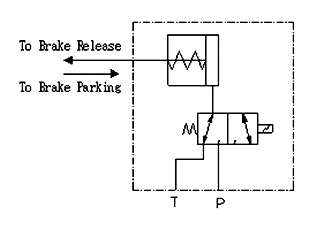

- Hydraulic circuit
“B” Type
- Operating Force : 120±10㎏f at Min 10 bar
- Operating Stroke : 25+2mm at Min 10 bar
- Weight : 7.0 Kg
- Available Voltage : 12Vdc or 24 Vdc

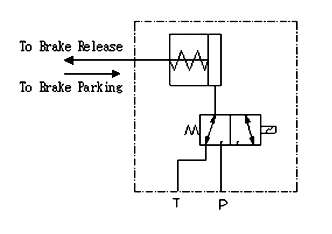

- Hydraulic circuit
