유압밸브

지게차의 포크 이동 방식에 따라 양개식, 편개식, 쉬프트식에 사용되는 밸브이다.

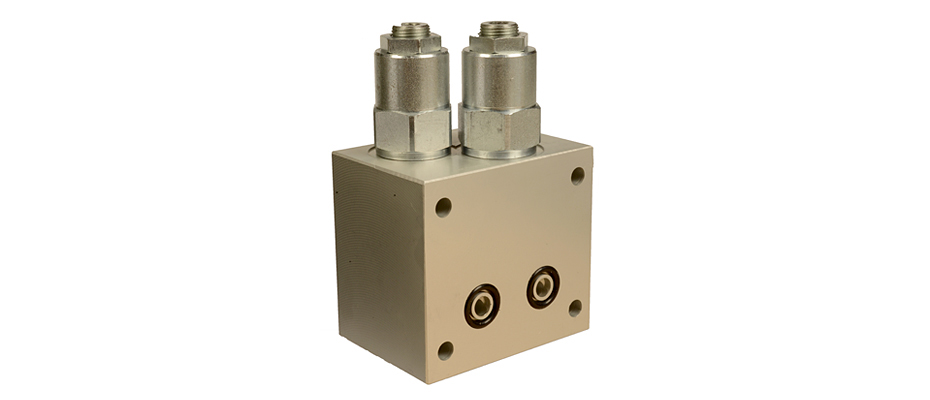

DOUBLE OVERCENTER VALVE

Specifications

- Max Pressure : 350 bar
- Setting Pressure : 140~350 bar
- Flow Rate : 60 l/min
- Pilot Ratio : 6:1

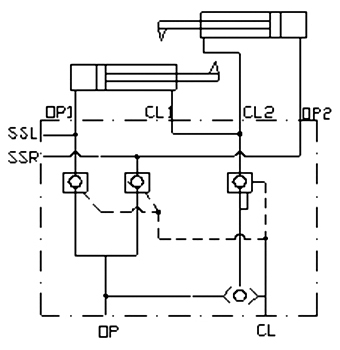

- Hydraulic circuit

DOUBLE PILOT CHECK VALVE

Specifications

- Max Operating Pressure : 350 bar
- Rated Flow : 30 lpm
- Cracking Pressure : 사용자 주문 사양
- Pilot Ratio :  4 : 1

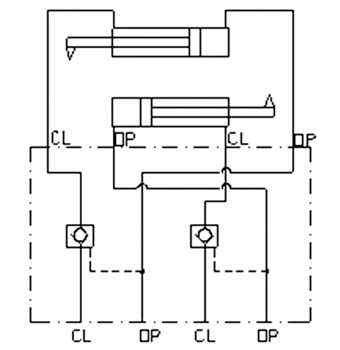

- Hydraulic circuit

3 POSITION RELIEF VALVE

Specifications

- Rated Pressure : 210 bar
- Rated Flow : 60 lpm

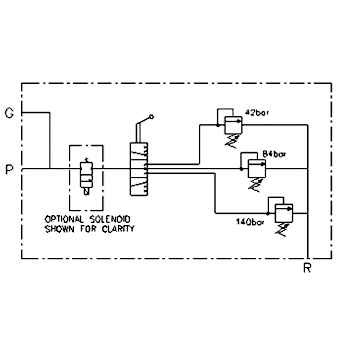

- Hydaulic circuit

Specifications

- Max Operating Pressure : 240 bar
- Rated Flow : 60 lpm

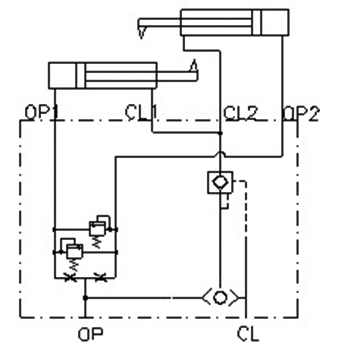

- Hydaulic circuit
